Corner Magnet

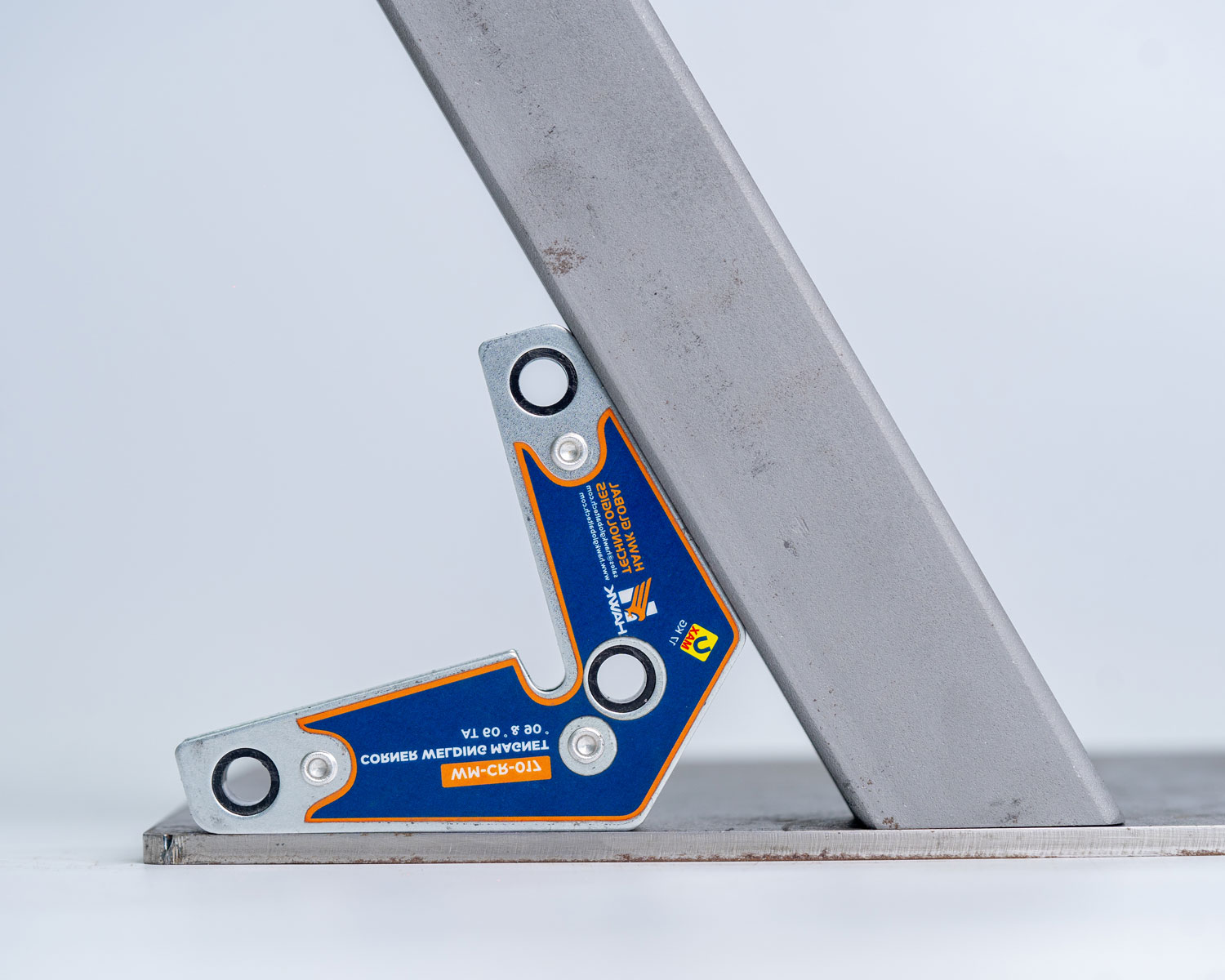

1) Create corners by holding from the inside or outside, providing you with a unobstructed area for tack welds.

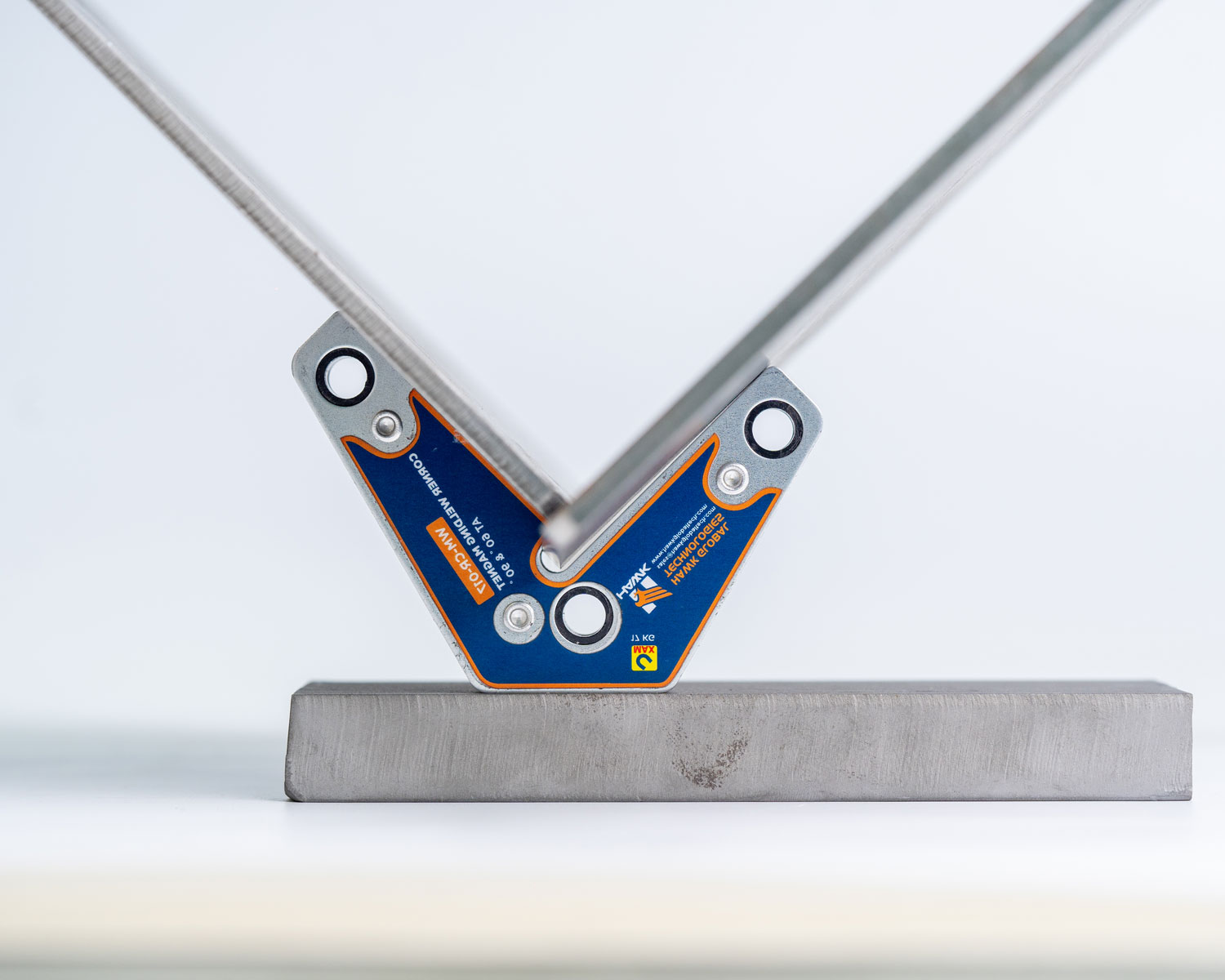

2) Provides unobstructed access to inside corners for perfect tack welds.

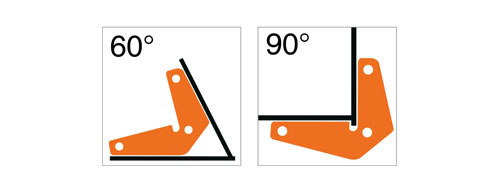

3) Use the outer edges of the corner magnet for setting up materials at 90° and 60°.

Specifications


MODEL NO.

WM-CR-017

DIMENSIONS

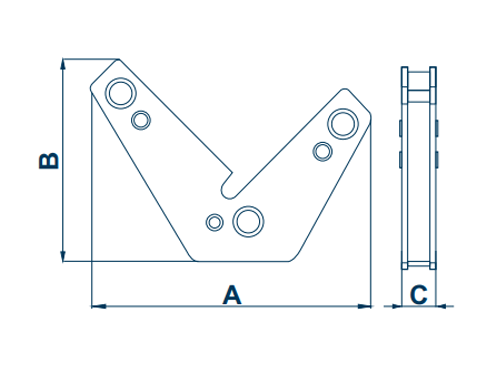

Dimensions(mm)
A B C
100 73 14

ANGLES

60˚/90˚

PULL OFF FORCE(KG)

17

NET WEIGHT (KG)

0.68
